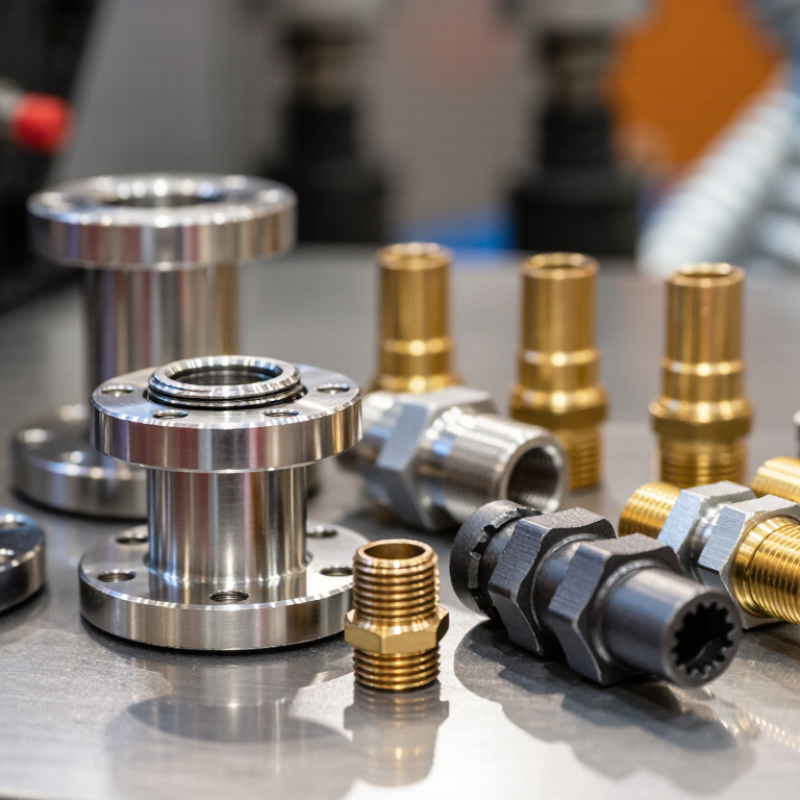

What Types of Hydraulic Fittings Are There?

Hydraulic fittings may look like small hardware, but they control how fluid moves through a working system. A wrong connection can cause leaks, pressure loss, or difficult maintenance. The choice also depends on pressure, fluid compatibility, temperature, vibration, and installation space. Small details matter.

Grand View Research estimated the global hydraulic hose market at about USD 1.8 billion in 2022 and projected continued growth through 2030. That report concerns hoses, not fittings, but it reflects demand across connected hydraulic components. It is useful context, not a direct measure of the fittings market.

Purdue fluid-power researcher Dr. Andrea Vacca studies hydraulic systems and their performance. A practical principle consistent with this engineering work is: “Select a fitting for its pressure rating, fluid compatibility, and service conditions—not appearance.” This is a paraphrase, not a verified verbatim quotation. That distinction matters.

This guide explains common fitting types, including threaded, flanged, quick-disconnect, and bite-type designs. It also compares their sealing methods and typical applications. A fitting that looks suitable may still have the wrong thread or seal. Easy to miss. Check the system specifications before choosing; even experienced teams can overlook an interface detail.

How Hydraulic Fittings Are Classified by Connection Type

Hydraulic fittings are commonly classified by how they join a hose, tube, or port. The connection determines how pressure is sealed and how easily a line can be serviced. Threaded connections use mating threads, often with a separate seal or sealing surface. Flare fittings seal metal-to-metal. Compression fittings grip tubing with a ferrule, while flange connections use bolts and a face seal. Fit matters.

Two useful technical references give concrete examples. ISO 8434-1 specifies 24-degree cone connections; SAE J514 covers 37-degree flare fittings. These angles are not interchangeable. A 37-degree fitting forced onto a 24-degree seat can leak or damage the sealing faces. In the field, check the seat angle, thread form, and tube size—not just whether the parts screw together.

Connection choice also reflects access and maintenance needs. A flange can suit larger lines where bolts and a gasket are practical. Compression fittings can simplify tube assembly, but ferrule installation and tube preparation matter. Threaded ports save space, yet thread type and sealing method must match. Standards are more useful here than broad market estimates; connection geometry is the deciding data. A small caveat: real assemblies can still vary by manufacturer and application.

Threaded Fittings: NPT, BSP, and Metric Designs

Threaded hydraulic fittings connect hoses, tubes, and components through matching screw threads. The three common systems are NPT, BSP, and metric, but their similar appearance can be misleading. Small details matter. NPT uses tapered threads with a 60-degree thread angle; tightening creates interference between the threads, and suitable sealant is commonly used. BSP includes both BSPT tapered threads and BSPP parallel threads. BSP threads use a 55-degree profile, so they should not be assumed interchangeable with NPT. A parallel BSP fitting typically seals against a washer, O-ring, or another designed sealing face.

Metric fittings generally use straight threads, often with a 60-degree profile. The thread itself usually provides retention, while an O-ring, bonded seal, or cone seat creates the fluid seal. Do not guess. Check the thread diameter, pitch, and profile, then confirm how the fitting is intended to seal. A connection that starts by hand may still be the wrong type. For example, forcing an NPT fitting into a similar-looking BSP port can damage threads or cause leakage under pressure. This is easy to overlook when parts are oily or access is tight. Follow the fitting and equipment specifications for installation torque, pressure rating, and fluid compatibility; extra tightening is not a reliable fix for a mismatch.

Flared and Flareless Fittings for Sealed Connections

Crimped, Push-to-Connect, and Quick-Disconnect Fittings

Specialty Fittings for Adapters, Swivels, and Hose Assemblies
