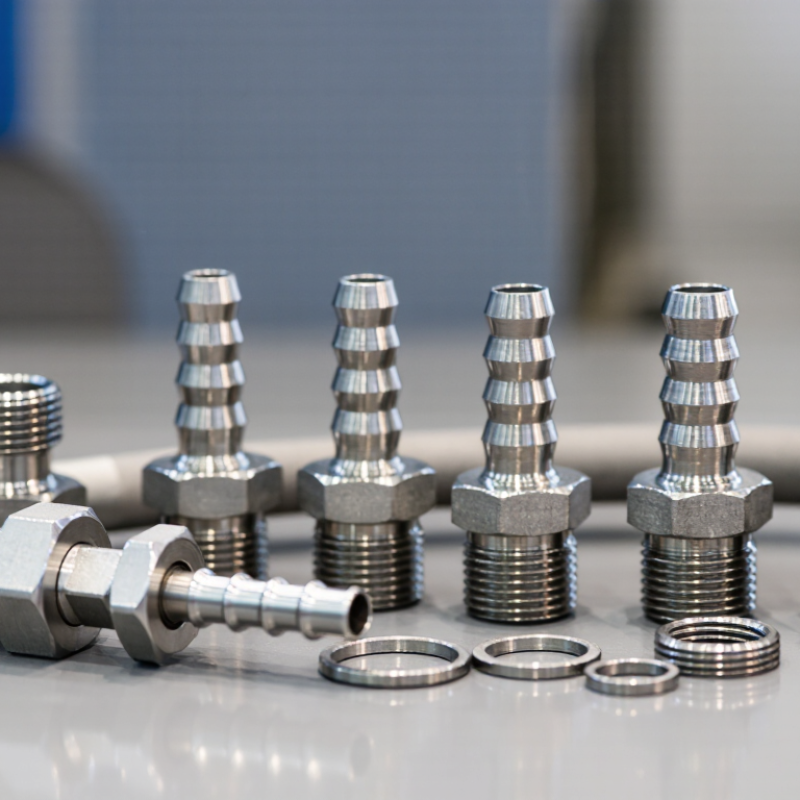

What Is a High Pressure Fitting and How Does It Work?

In hydraulic, pneumatic, and process systems, a fitting is more than a simple connector. High pressure fittings join tubes, hoses, valves, gauges, and equipment while containing demanding internal forces. At 10,000 psi, a small scratch or loose connection can become a serious leak. Material choice, thread design, and installation accuracy therefore matter greatly. A fitting may look simple. It is not.

The working principle depends on controlled sealing and mechanical strength. When tightened correctly, a cone, ferrule, gasket, or O-ring forms a barrier against escaping fluid. Internal pressure then presses the components together, helping maintain the seal. Stainless steel is common because it resists corrosion and handles demanding service conditions. However, no material suits every application. Temperature, fluid chemistry, vibration, and pressure cycles can change the correct choice.

Reliable selection begins with verified pressure ratings and compatible connection standards. Manufacturer instructions should guide thread engagement, torque, cleaning, and inspection. A calibrated torque wrench is safer than guesswork. Practical experience also shows an uncomfortable truth: a fitting can appear secure while hiding damage, contamination, or misalignment. Vibration may expose that weakness later. This guide explains how high pressure fittings work, how their sealing methods differ, and what professionals check before putting a system into service. The details may seem small. They are often decisive.

What Is a High Pressure Fitting and How Does It Work?
Table of Contents [Hide]
1 Definition and Purpose of a High-Pressure Fitting
2 Key Components and Materials Used in High-Pressure Fittings
3 How High-Pressure Fittings Create a Secure Connection
4 Types of High-Pressure Fittings and Their Applications
5 Pressure Ratings, Installation, and Safety Considerations

Definition and Purpose of a High-Pressure Fitting

A high-pressure fitting is a precision component that connects pipes, tubes, valves, or instruments in a pressurized system. Its purpose is to create a secure flow path without allowing fluid or gas to escape. Unlike ordinary connectors, it must withstand greater internal force, vibration, temperature changes, and repeated pressure cycles.

The fitting usually includes a shaped body, threaded or compression ends, and a sealing surface. Some designs use metal-to-metal contact. Others depend on a carefully selected seal.

Material choice matters because water, oil, gas, and corrosive chemicals can affect strength and compatibility. The pressure rating must match the complete system, not only the fitting itself. That detail is often missed.

During installation, technicians inspect threads, remove dirt, and align the connected parts without forcing them. Excessive tightening may damage threads or distort a seal. Too little tightening can cause leakage. Small details matter.

In field work, I have found that vibration and poor alignment create problems faster than pressure alone. A fitting can look solid while its seal slowly weakens. That assumption can be wrong.

Regular inspection should check corrosion, surface damage, unusual movement, and pressure drops. The correct fitting is defined by its connection method, material, temperature range, and working pressure. It is not simply a stronger piece of pipe.

Key Components and Materials Used in High-Pressure Fittings

What Is a High Pressure Fitting and How Does It Work?

Key Components and Materials Used in High-Pressure Fittings

A high-pressure fitting joins tubes, hoses, or valves while controlling intense fluid forces. Its body guides the flow, while threads, seals, and locking parts prevent leakage. Many designs use tapered threads, compression rings, or cone-shaped connections. Each method grips differently. Proper alignment remains essential.

Material choice affects strength, service life, and safety. Stainless steel offers strong corrosion resistance and performs well with water, gases, and many industrial fluids. Carbon steel can handle heavy mechanical loads, but it often needs surface protection. Brass suits moderate pressure systems and easier installation. Plastic fittings may work in selected low-temperature applications, though they can weaken under heat or sudden pressure changes. Sealing elements commonly use engineered rubber or polymer compounds. Compatibility must be checked carefully.

Tips: Match the fitting rating with the system’s maximum working pressure, not its normal pressure. Inspect threads for damage and remove dust before assembly. Tighten according to tested procedures. Too little force may leak, while too much force can distort the seal. I have seen small alignment errors cause repeated failures. Do not ignore temperature, vibration, or chemical exposure. These details are easy to miss. A fitting that looks perfect may still need a pressure test before service.

What Is a High Pressure Fitting and How Does It Work? — Key Components and Materials Used in High-Pressure Fittings

A high-pressure fitting connects tubes, pipes, valves, instruments, or other fluid-system components while maintaining a reliable seal under elevated pressure. Its performance depends on the fitting design, connection method, material, tube size, temperature, fluid compatibility, and installation quality.

High-Pressure Fitting Components, Materials, and Operating Functions
Component or Fitting Type Primary Function Common Materials Typical Sealing or Connection Method Important Performance Characteristics Common Applications
Fitting Body Provides the main pressure-containing passage and joins the connected components. 316 stainless steel Carbon steel Nickel alloys Machined tube ends, tapered threads, face seals, or gasketed interfaces. Must withstand internal pressure, cyclic loading, vibration, corrosion, and the operating temperature. Hydraulic systems, process piping, test equipment, energy systems, and instrumentation.
Tube Nut Applies axial force to secure the tube and activate the ferrule or mechanical seal. 316 stainless steel Carbon steel Brass Threaded engagement with the fitting body. Correct tightening is essential; excessive tightening can damage threads, tubing, or sealing components. Compression-style tube fittings and removable instrumentation connections.
Ferrule or Bite Ring Grips the tube and creates a mechanical seal when the nut is tightened. Hardened stainless steel Carbon steel Metal-to-metal contact formed by controlled deformation or wedging onto the tube. Provides resistance to tube pullout, vibration, and pressure pulsation when correctly installed. High-pressure instrumentation tubing, hydraulic lines, and gas systems.
O-Ring Seal Prevents fluid leakage across a static or dynamic sealing interface. Fluorocarbon elastomer Nitrile rubber EPDM Perfluoroelastomer Compression of the elastomer inside a precisely machined groove. Material selection must match the fluid, temperature, pressure, and required chemical resistance. Hydraulic connectors, face-seal fittings, valves, pumps, and test assemblies.
Metal Gasket or Cone Seal Creates a high-integrity seal for demanding pressure, temperature, or vacuum service. 316 stainless steel Nickel alloys Copper Metal-to-metal sealing through controlled contact between matched sealing surfaces. Suitable for high-temperature or chemically aggressive environments where elastomers may degrade. High-pressure gas systems, analytical equipment, reactors, and specialized process lines.
Threaded Port or Adapter Connects fittings with different thread forms, sizes, or component configurations. Stainless steel Carbon steel Brass Nickel alloys Tapered threads may use a compatible thread sealant; parallel threads generally require an O-ring, gasket, or other dedicated seal. Thread compatibility, engagement length, torque, and sealant selection affect pressure integrity. Pipe-to-tube transitions, gauge connections, manifold assemblies, and equipment interfaces.
High-Pressure Valve Connection Controls, isolates, or directs pressurized fluid within a system. 316 stainless steel Carbon steel Nickel alloys Tube fitting, threaded, welded, flanged, or metal-sealed connection. Requires suitable pressure rating, shutoff performance, flow capacity, and compatibility with the process fluid. Hydraulic control, gas distribution, sampling systems, pressure testing, and process instrumentation.
Tube or Pipe Carries the pressurized fluid between fittings and other system components. Stainless steel Carbon steel Copper Engineering polymers Connected by ferrules, threads, welding, flanges, or other approved joining methods. Wall thickness, outside diameter, material strength, temperature, unsupported length, and fatigue resistance affect allowable pressure. Hydraulic power units, compressed gases, chemical processing, and laboratory systems.
Flange and Gasket Assembly Joins larger pipes, vessels, valves, or equipment where disassembly may be required. Carbon steel Stainless steel Spiral-wound gasket Metal gasket Bolted connection that compresses a gasket between accurately aligned faces. Bolt load, flange alignment, gasket selection, surface finish, and temperature cycling influence leak resistance. Process piping, pressure vessels, pumps, compressors, and industrial equipment.
Welded Connection Creates a permanent connection with minimal leak paths and high structural integrity. Stainless steel Carbon steel Nickel alloys Fusion welding followed by inspection and, where required, pressure testing. Can reduce the number of mechanical seals, but requires qualified procedures, skilled fabrication, and inspection. High-purity gas service, severe-pressure piping, chemical plants, and permanent process installations.
Pressure-Retaining Wall Contains the fluid and transfers pressure loads through the fitting structure. Austenitic stainless steel Alloy steel Nickel-based alloy Integral part of the fitting body, tube, pipe, valve, or vessel. Allowable pressure is determined by design calculations, material strength, dimensions, temperature derating, and applicable standards. All high-pressure fluid systems, including liquids, gases, and supercritical fluids.

Selection note: There is no single universal pressure rating for a fitting material. Always verify the manufacturer-independent design specification, connection standard, tube or pipe dimensions, operating temperature, fluid compatibility, corrosion allowance, and applicable pressure-vessel or piping requirements before use.

How High-Pressure Fittings Create a Secure Connection

A high-pressure fitting creates a secure connection by controlling force, sealing, and alignment. Threads guide the parts together, while a cone, ferrule, gasket, or metal-to-metal seat blocks the fluid path. The fitting must match the tube material, pressure rating, temperature, and fluid. A connection can look tight and still leak. Torque matters, but excessive torque can deform sealing surfaces or damage threads. Clean parts matter too.

Standards provide the technical foundation. ASME B16.5 defines pressure-temperature ratings and dimensions for many flanged connections, while ISO 4413 addresses safety requirements for hydraulic systems. The U.S. Department of Energy’s Improving Compressed Air System Performance report states that leaks can waste 20–30% of compressor output. That figure shows why small fitting defects deserve attention. Under pressure, vibration and thermal cycling can slowly loosen a weak joint. Not dramatic.

In field practice, installers should inspect tube ends, confirm alignment, and follow the specified tightening method. A pressure test should come after assembly, not replace careful preparation. Leak-detection fluid can reveal bubbles around threads and seals. I would not trust appearance alone. Inspection records, material certificates, and calibrated gauges improve reliability, but none proves perfect performance. Retesting after maintenance is often forgotten. That is the uncomfortable part.

Types of High-Pressure Fittings and Their Applications

What Is a High Pressure Fitting and How Does It Work?

A high-pressure fitting connects pipes, tubes, or hoses without allowing fluid to escape. It works by creating a tight mechanical seal around the connection. Threads, compression rings, or cone-shaped surfaces hold the parts together. The fitting must match the system’s pressure, temperature, fluid, and tube size. A small mismatch can cause leakage, vibration, or sudden failure.

Types of High-Pressure Fittings and Their Applications

Threaded fittings are common in hydraulic equipment, test benches, and compact piping systems. Compression fittings use a ferrule to grip tubing, making them useful where welding is impractical. Cone-and-thread fittings suit very high-pressure gas and liquid service because their metal-to-metal seal handles demanding conditions. Flange fittings work well on larger pipes, pumps, and industrial machinery, especially when regular maintenance is expected. Elbow, tee, cross, and reducer shapes help control direction and connect different line sizes. However, selecting by shape alone is a mistake. Material compatibility matters just as much.

Tips: Check the pressure rating at the actual operating temperature. Inspect threads and sealing surfaces for scratches. Keep tubes fully inserted and properly aligned. Do not force a fitting that feels tight too early. A clean connection is safer. In real installations, small alignment errors are easy to overlook, so verify every joint before pressurizing the system. A pressure test should use approved procedures and suitable protective equipment.

Pressure Ratings, Installation, and Safety Considerations

A high-pressure fitting joins tubes, hoses, or process equipment while containing forceful fluids or gases.

Its pressure rating is not a single universal number. It depends on material, temperature, connection design, wall thickness, and cyclic loading. ASME B16.5 and ASME B31.3 require engineers to match components with operating conditions, not pressure alone.

For example, a fitting rated at 10,000 psi at room temperature may require a lower rating at elevated temperature. Thread damage, vibration, and corrosion can reduce its real service life. The numbers on a catalog page are not the whole story.

Installation demands clean, square tubing and compatible sealing surfaces. Technicians should inspect threads, remove debris, and tighten connections to the manufacturer’s specified torque. Over-tightening can distort a cone or crack a body. Under-tightening can create a small leak that becomes dangerous under pressure.

Pressure testing should use a controlled procedure, suitable barriers, and calibrated gauges. Never inspect a suspected leak with bare hands. Fluid injection injuries can occur through tiny openings.

The U.S. Bureau of Labor Statistics recorded 5,486 fatal occupational injuries in 2022, reinforcing why disciplined controls matter, even though pressure systems represent only one part of workplace risk.

Tips:

Depressurize and isolate the line before maintenance. Verify the gauge reads zero. Use compatible seals, and replace damaged fittings rather than repairing them casually. Record torque values and test results. A practical mistake is trusting a fitting because it “looks strong.” Appearance is not a pressure rating. Review the installation again.
