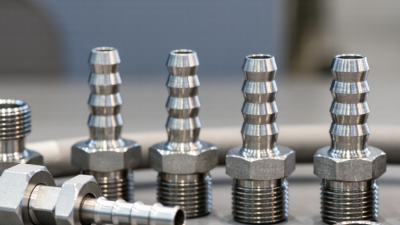

What Are High Pressure Fittings?
High pressure fittings are compact components with an exacting job: they connect tubes, pipes, hoses, or equipment while containing pressurized fluid or gas. Their design may include threaded ends, compression connections, flanges, or other interface types. The right choice depends on pressure, temperature, fluid compatibility, vibration, and the connection standard. A fitting that looks substantial is not automatically suitable. Ratings and installation instructions matter.
A useful engineering principle is captured in this illustrative comment from a fictional high-pressure systems engineer, Maya Chen: “A pressure rating is only meaningful when the fitting, materials, and installation work together.” This is an original summary, not a verified quotation from a real expert. In practice, engineers check the assembly’s lowest-rated component, inspect sealing surfaces, and follow the manufacturer’s specified assembly procedure. Small details count. A scratched sealing face or incorrectly prepared tube can undermine an otherwise suitable connection.
This guide explains what high pressure fittings are, how common designs differ, and where their performance limits come from. It also covers material selection, pressure ratings, seals, and installation checks. Those details deserve attention. Specifications can vary between manufacturers, and a fitting should never be selected from appearance alone. Even experienced teams can miss a mismatch when parts seem interchangeable. That is worth questioning: compatibility must be confirmed, not assumed.
Definition and Purpose of High-Pressure Fittings

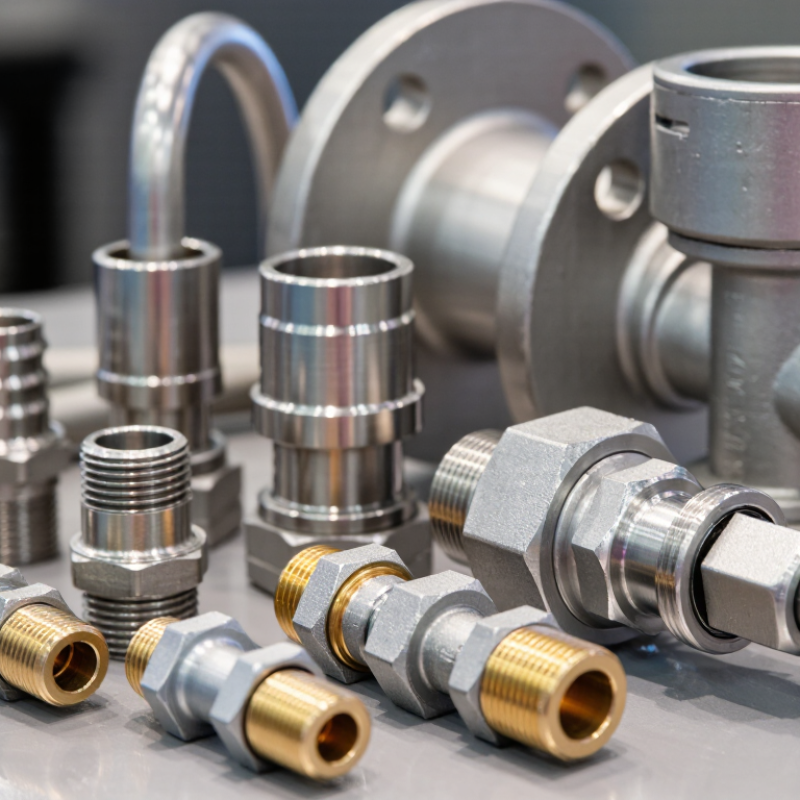

What Are High Pressure Fittings?
Definition and Purpose of High-Pressure Fittings
High-pressure fittings connect tubes, pipes, or hoses carrying pressurized liquids and gases. Their purpose is to maintain a secure, leak-resistant path while handling the system’s specified pressure, temperature, vibration, and fluid. Common designs include threaded, compression, and flanged connections. “High pressure” has no single universal threshold; suitability depends on the application and the relevant component ratings. A fitting can look substantial and still be wrong.
Selection means checking material compatibility, connection type, pressure and temperature ratings, and installation requirements. ASME B31.3 provides requirements for process piping, while ISO 8434 covers metallic tube connections in fluid power and general applications. The U.S. Department of Energy’s Improving Compressed Air System Performance: A Sourcebook for Industry reports that leaks can waste 20–30% of compressor output in many plants. Poorly chosen or installed connections can contribute to leakage, though fittings are only one possible cause. A rated component may still leak if assembly is careless.
Tip: Match every fitting to the system’s documented limits, and follow the specified assembly procedure. Check for leaks after installation and during maintenance. Small part. Big consequence.
What Are High-Pressure Fittings? — Definition and Purpose
High-pressure fittings connect, redirect, or control fluid flow in systems operating under pressure. Their pressure capacity depends on the fitting’s material, design, size, temperature, and applicable standard.
Reference example: ASME B16.5 pressure ratings for ASTM A105 carbon steel flanges at 100°F. These flange ratings illustrate how pressure classes differ; they are not universal ratings for fittings. Always check the specific product’s pressure-temperature rating and relevant standard.
How High-Pressure Fittings Contain and Control Fluid Flow
What Are High Pressure Fittings?
High-pressure fittings join pipes, tubes, and equipment while keeping pressurized fluid inside a defined path. Their bodies and sealing surfaces must withstand the system’s working pressure, temperature, and fluid chemistry. A secure joint depends on the fitting design and careful assembly. Small details matter.
Different designs create seals in different ways. In cone-and-thread connections, matching metal surfaces meet under controlled tightening. Compression fittings grip tubing with a ferrule, while other designs use a gasket or O-ring. These parts are not interchangeable by appearance alone. A mismatch can cause leaks or damage.
Fittings contain flow, but most do not regulate it. Valves or calibrated restrictors are needed when an operator must change flow rate. Pressure spikes, vibration, and temperature changes can also challenge a connection over time. No seal is perfect. Selection should account for the entire assembly, including tubing, seals, and operating conditions. During installation, clean surfaces, correct alignment, and the specified tightening method help reduce failure risks. Inspection can reveal corrosion, movement, or seepage, though a fitting may look secure and still be poorly matched. That possibility deserves a second check.
Common Types and Materials of High-Pressure Fittings
What Are High Pressure Fittings?
Common Types and Materials of High-Pressure Fittings
High-pressure fittings connect pipes, tubes, and equipment while containing fluid or gas under demanding conditions. Their joint design affects sealing, maintenance, and resistance to vibration. Threaded fittings are compact and common, but threads need compatible sealants and careful assembly. Compression fittings grip tubing with a ferrule, making them useful where welding is impractical. Flanged fittings use bolted faces and gaskets. They allow easier inspection and replacement. Welded connections can provide a durable joint, though installation requires qualified procedures and access to suitable equipment.
Stainless steel is widely used for corrosion resistance, especially around moisture or aggressive process fluids. Carbon steel is often selected for strength and cost, but it may need protection in corrosive environments. Alloy steels suit some elevated-temperature or high-stress services. Brass appears in certain compatible applications, but it is not suitable for every fluid or pressure range. Material choice matters. A mismatch can lead to corrosion, leakage, or premature failure.
Check pressure and temperature ratings together; a fitting’s allowable pressure may change as temperature rises. Also confirm tube dimensions, thread form, seal material, and fluid compatibility. These details are easy to overlook. In practice, the connection is often the weak point, not the pipe itself. Avoid assuming that fittings with similar dimensions are interchangeable. Verify specifications against the system’s actual operating conditions.
Key Standards and Pressure Ratings
What Are High Pressure Fittings?
Key Standards and Pressure Ratings
High pressure fittings join pipes or tubes in systems exposed to substantial pressure, such as hydraulic circuits or process lines. Their safe working limits depend on more than a pressure number stamped on the fitting. Material, temperature, connection type, and pressure cycles all matter. Small details matter.
For forged fittings, ASME B16.11 specifies dimensions and pressure classes for threaded and socket-weld connections. A class designation is not a universal pressure rating in psi; allowable pressure varies with material and operating temperature. Other fitting types may follow different standards, so confirm that the document matches the actual connection and service. Do not assume a familiar standard covers every component in an assembly.
Pressure ratings should be checked against the complete system, including tubing, valves, seals, and installation conditions. A fitting rated for a given service can still be unsuitable if corrosion, vibration, or temperature swings are overlooked. That detail is easy to miss. Review current standard editions, material certificates, and manufacturer test data, then have a qualified engineer verify the design. In practice, paperwork can look tidy while installation details remain uncertain.
What Are High Pressure Fittings? - Key Standards and Pressure Ratings
High-pressure fittings connect pipes, tubes, or equipment in systems operating at elevated pressure. They are commonly made from forged or machined metal and may use threaded, socket-weld, butt-weld, or hydraulic connections. A fitting’s allowable working pressure depends on its standard, material, size, wall thickness, connection, and operating temperature; a class designation alone is not a pressure value in psi.
| Standard |
Fitting Type or Application |
Pressure Rating Basis |
Important Selection Notes |
| ASME B16.11 |
Forged socket-weld and threaded fittings |
Uses fitting class designations. Common classes include 3000, 6000, and 9000 for socket-weld fittings, and 2000, 3000, and 6000 for threaded fittings. |
Class numbers are not direct psi ratings. The applicable pressure limit must be established for the material, size, temperature, and connected pipe. |
| ASME B16.9 |
Factory-made wrought butt-welding fittings, such as elbows, tees, reducers, and caps |
Does not assign a universal pressure class to each fitting. Pressure capability is determined by the fitting’s material, dimensions, wall thickness, temperature, and piping design. |
Confirm that the fitting end dimensions and wall thickness match the piping specification. |
| MSS SP-97 |
Integrally reinforced forged branch outlet fittings, including socket-weld, threaded, and butt-weld outlets |
The standard addresses fitting design and dimensions; it does not provide one universal working-pressure value for every size and material. |
Check the fitting’s design conditions and compatibility with the run pipe and branch connection. |
| ISO 8434-1 |
Metal tube connections using 24-degree cone connectors, commonly used in hydraulic systems |
Pressure capability depends on the connector series, tube outside diameter, tube wall thickness, material, and assembly conditions. |
Use the pressure limits specified for the exact connector and tube combination; do not infer a rating from the connection angle alone. |
| SAE J514 |
37-degree flare hydraulic tube fittings |
Working pressure varies with fitting size, material, tube dimensions, and assembly. The standard defines connection requirements rather than a single pressure rating for all fittings. |
Verify the manufacturer’s published working-pressure data for the complete fitting and tube assembly. |
| ASME B1.20.1 |
NPT inch tapered pipe threads |
Defines thread form and dimensions, not a pressure rating for a complete fitting or piping system. |
Pressure suitability also depends on fitting design, material, sealant, installation, size, and temperature. |
Pressure Rating Checklist
- Check the applicable standard, material grade, nominal size, and fitting class or series.
- Use the pressure-temperature limits for the actual material and operating temperature.
- Confirm that the pipe or tube, connection, and joining method are rated for the same service conditions.
- Account for applicable code requirements, cyclic loading, corrosion, and installation conditions.
- Use documented design data for the complete assembly; do not treat a class number as a psi value.
Applications and Factors in Fitting Selection
What Are High Pressure Fittings?
Applications and Factors in Fitting Selection
High pressure fittings connect sections of equipment that carry fluids or gases under substantial pressure. They are used in hydraulic machinery, test rigs, process lines, and other systems where a weak connection can cause leaks or sudden failure. Their shape may look simple, but small differences in thread form, sealing method, and material matter.
Choose fittings for the system’s actual operating conditions, not pressure alone. Check the working pressure and temperature together, then confirm the fitting’s rating against the equipment documentation. The conveyed fluid must also be compatible with the fitting material and seal. Consider tube size, connection type, vibration, and pressure surges. A fitting that fits by hand may still have the wrong thread or sealing face. Selection is not always tidy; available space and maintenance needs can complicate the choice. That is a reason to verify, not guess.
Tips: Keep connections clean during assembly, and use the specified installation method. Avoid forcing misaligned parts. After installation, inspect for leaks under the approved test procedure, and recheck connections during routine maintenance. Small details matter.
